INS4DT2200600 3/8 Hose Barb Valved In-Line IdentiQuik Coupling Insert with RFID

#NCPC404

Product Description

INS4DT2200600
3/8 Hose Barb Valved In-Line IdentiQuik Coupling Insert with RFID
Main Features:
Data exchange using RFID (Radio Frequency Identification)
Smart Couplings
“CPC Click”
Available in CPC’s PLC12, NS4, SMC, UDC series couplings.
Main Benefits:
Brand protection, fluid tracking and extended equipment life.
Prevent misconnections
Audible confirmation of connection
Suitable for a wide variety of materials and flow sizes
Main Specifications:
Material: Polypropylene
Material Finish: Black/Grey
Color: Black/Grey
Mounting Option: Free Floating
Temperature Range: 32°F - 160°F (0°C - 71°C)
Seal Options: EPDM
Valve Spring: 316 Stainless Steel
Valve Option: Valved
Body Type: Insert
Bag Qty: 25
COUPLING INSERTS - Polypropylene
TERMINATION
IN-LINEHOSE BARB (RS-232
INTERFACE)
TUBING/THREAD SIZE
3/8" ID
METRIC EQ.
9.5mm
SHUTOFF
iNS4DT2200600

*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters. Couplings are pictured with valves unless otherwise noted.
WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.

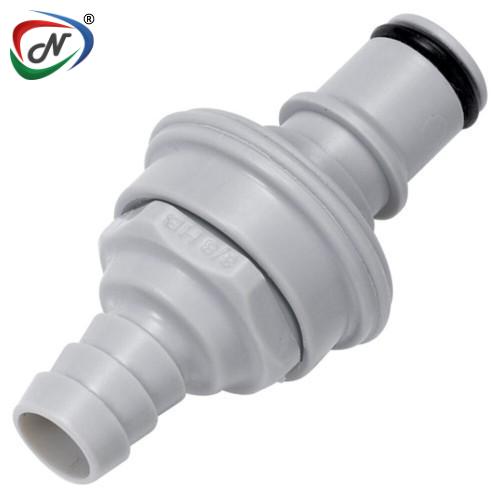

Note: Image is just for ref.

Read More

Medical (Core) & Thermal Industry

Additional Information

NESPL Code	NCPC404
Manufacturer Code	INS4DT2200600
Manufacturer	CPC Quick Connect & Disconnect Solutions
Type	Quick Fittings
